Electronics Manufacturing Processes

Finding the Key to Profitable Production.

Through-Hole Technology (THT) remains an indispensable process in electronics manufacturing, particularly for power electronics, heavy-duty connectors, and components subjected to high mechanical stress.

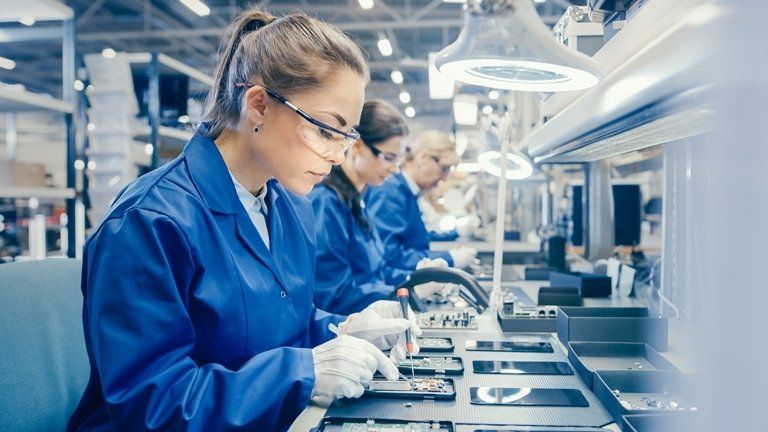

While modern production heavily relies on SMT, THT is crucial for ensuring robust, highly reliable solder joints. Whether your operation utilizes manual hand assembly for specialized low-volume runs or automated wave and selective soldering systems.

I help you optimize your thermal profiles and assembly workflows to eliminate solder defects and maximize process yields.

Surface-mount technology (SMT) is the absolute industry standard for modern printed circuit board assembly.

The process begins with applying solder paste to the PCB pads, typically utilizing high-precision stencil printing. In specific setups, additional adhesive dots are dispensed to secure components before soldering. Thermal energy is then applied to melt the paste, creating reliable mechanical and electrical joints.

For double-sided SMT boards, a double-reflow soldering process (forced convection reflow) is the industry standard today:

1. Top Side: Solder paste printing, component placement, and reflow soldering.
2. Underside: Board inversion, secondary solder paste printing, placement, and a second pass through the reflow oven. During the second heat cycle, lighter components on the bottom are held securely by the surface tension of the molten solder, while heavier components are pre-secured using adhesive.

The Key Advantages: High packaging density allows for packed layouts in extremely tight spaces. Furthermore, SMT is highly automated, minimizing manual intervention. Leveraging my deep expertise in SMT line configurations.

I help you optimize your printing profiles, placement speeds, and reflow curves to maximize your first-pass yield (FPY).

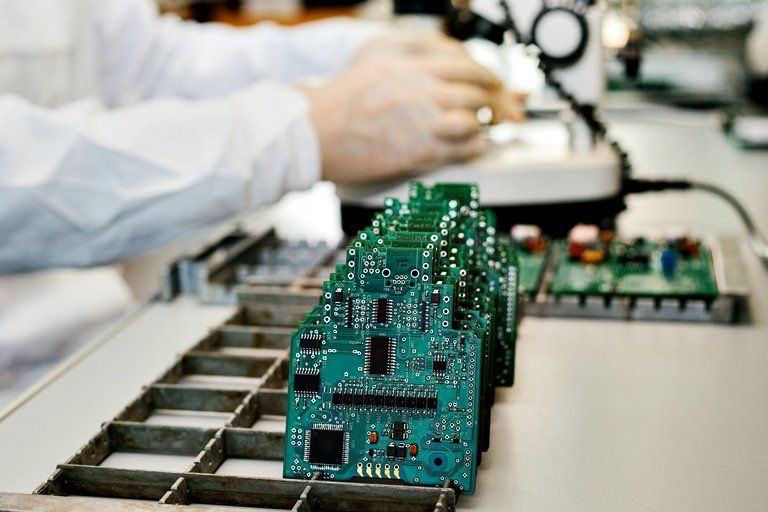

Once assembly is complete, verifying absolute functional integrity is paramount. To guarantee zero-defect quality, components undergo rigorous quality assurance within the electronics testing area.

Testing typically involves In-Circuit Testing (ICT) or Functional Testing (FCT) utilizing bed-of-nails fixtures, customized test benches with integrated spring contact pins, and dedicated test software. Catching a defect only after final product assembly is a highly cost-intensive failure mode.

I know these exact quality gates and operational challenges inside out. I provide expert guidance to optimize your inspection strategies and testing workflows, protecting your production efficiency and end-product reliability.

Electronic subassemblies involve integrating multiple interconnected printed circuit boards, connectors, and peripheral components into a functional, cohesive electronic unit.

This modular system architecture is highly effective when a main board (or backplane) must support various modular options and configurations. Whether your production lines assemble these complex systems manually, rely on semi-automated cell manufacturing, or utilize fully automated end-of-line integration, I am here to advise you.

Together, we will optimize your material flows, assembly sequencing, and final quality gates to ensure seamless system integration.
